HATLAPA V250 Air Compressor Parts HATLAPA HAMWORTHY V250
Specifications:
| Brand | HATLAPA |
| Type | V250 |
| Delivery Time | 1-10 Working Days According To The Parts Of Different
Specifications |
| EXW | Shanghai Of China |
| MOQ | 1 |
| Price | Negotiable |
| Payment term | T/T,L/C |
| Supply Ability | 500 Pcs Per Month |
| Packaging Detials | Wooden Package, Plywood Case, Carton, Neutral Packing |
| Place of Origin | China Original |
Air Compressor Model List:
HATALAPA V250
HATLAPA W220,W220S,W280,W110,W140,W330,W420
W35,W45,W55,W80, L90,L100,L140,L160
HAMWORTHY V250
HAMWORTHY
2TF5,2TF54,2TM63,2TM6,V150,V200,V250,V375,V-150,V-200,V-250,V-375
2SF3, 2SF34, 2SF4, 2SF42, 2SF4F, 2SF42F, 2SF428V, 2TF5,
2TF54,2MF6,2MF64, 2MF62, 2TM6, 2TM62, 2TM63, 2TH6, 3SF, 3SF42, 2SF,
2SF42, HATALAPA HAMWORTHY V105, HATALAPA HAMWORTHY V200, HATALAPA HAMWORTHY V250, HATALAPA HAMWORTHY V350, 2SM10A35, 2SM18A46, 2SM20A35, B80V1D1

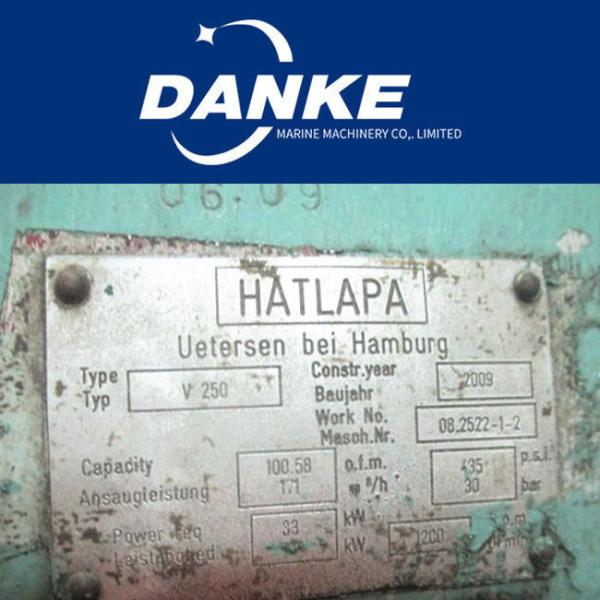

MAIN AIR COMPRESSOR
MAKER: HATLAPA MARINE EQUIPMENT
TYPE: V-250 TWO STAGE, TWIN CYLINDER
FIRST STAGE SOLENOID DRAIN VALVE P/N 2
FINAL STAGE SOLENOID DRAIN VALVE P/N 13
REPAIR KIT FOR FIRST STAGE SOLENOID VALVE
REPAIR KIT FOR FINAL STAGE SOLENOID VALVE
CONCENTRIC VALVE (1ST STAGE ) ASSEMBLY P/N 50
O-RING (1ST STAGE CONCENTRIC VALVE OUTER GROOVE TO CYLINDER) P/N 51
O-RING (1ST STAGE VALVE CAGE TO CYLINDER P/N 48
O-RING (1ST STAGE CONCENTRIC VALVE TOP FACE TO VALVE CAGE)P/N 52
O-RING (2ND STAGE VALVE CAGE TOP GROOVE TO CYLINDER) P/N 71
O-RING (2ND STAGE VALVE CAGE BOTTOM GROOVE TO CYLINDER) P/N 72
CONCENTRIC VALVE (2ND STAGE ) ASSEMBLY P/N 75
O-RING (2ND STAGE CONCENTRIC VALVE CAGE OUTER GROOVE TO CYLINDER)
P/N 76
O RING (2ND STAGE CONCENTRIC VALVE TOP FACE TO VALVE GAGE) P/N 77
GASKET (TURENEST TO COOLER HEADER) P/N 92
GASKET (COOLER HEADER TO 1ST STAGE CYL.) V105/150/200/250 ONLY) P/N
100
GASKET (COOLER HEADER TO 2ND STAGE CYL.) V105/150/200/250 ONLY) P/N
105
PRESSURE GAUGE (PANEL MOUNT) 0-10BAR P/N 284
PRESSURE GAUGE (PANEL MOUNT) 0-60BAR P/N 85
Crankshaft Bearing Ref.No.:2, 10.10.20 (10 REV 04/09)
Crankshaft Bearing Ref.No.:2, 10.30.20 (10.30 REV 11/10)
Radial Packing Ring Ref.No.:18, 10.130 (10 REV 04/09)
Piston Pos.35
Piston Ring SOC Pos.36
Piston Ring Taper Faced Pos.37
Piston Ring Barrel Faced Pos.38
Bearing - Big End Cylindrical Roller Pos.16
Hexagon Socket Set Screw Pos.41
Locknut Pos.42
Bearing-Small End Needle Roller Pos.17
HAMWORTHY V250
FIRST SEAGE CONCENTIC VALVE 45407442
SECOND STAGE CONCENTRIC VALVE 45407459
